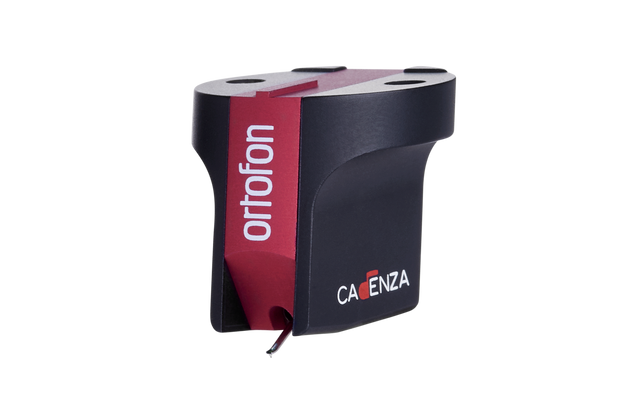

Spesifikasjoner for Ortofon Cadenza Red MC
Channel balance at 1 kHz
< 1,5 dB
Output voltage at 1 kHz, 5cm/sec
450 μV
Channel seperation at 1 kHz
> 23 dB
Channel seperation at 15 kHz
> 15 dB
Frequency response 20 Hz - 20 kHz
+3/-1 dB
Tracking ability at 315Hz at recommended tracking force
80 μm
Compliance, dynamic, lateral
12 μm/mN
Stylus type
Nude fine line on Al. cantilever
Stylus tip radius
r/R 8/40
Tracking force range
2,2-2,7 g
Tracking force, recommended
2,5 g
Tracking angle
20°
Internal impedance, DC resistance
5 Ohm
Recommended load impedance
50-500 Ohm
Cartridge body material
Stainless steel Aluminium
Cartridge colour
Red/Black
Cartridge weight
10.7 g
