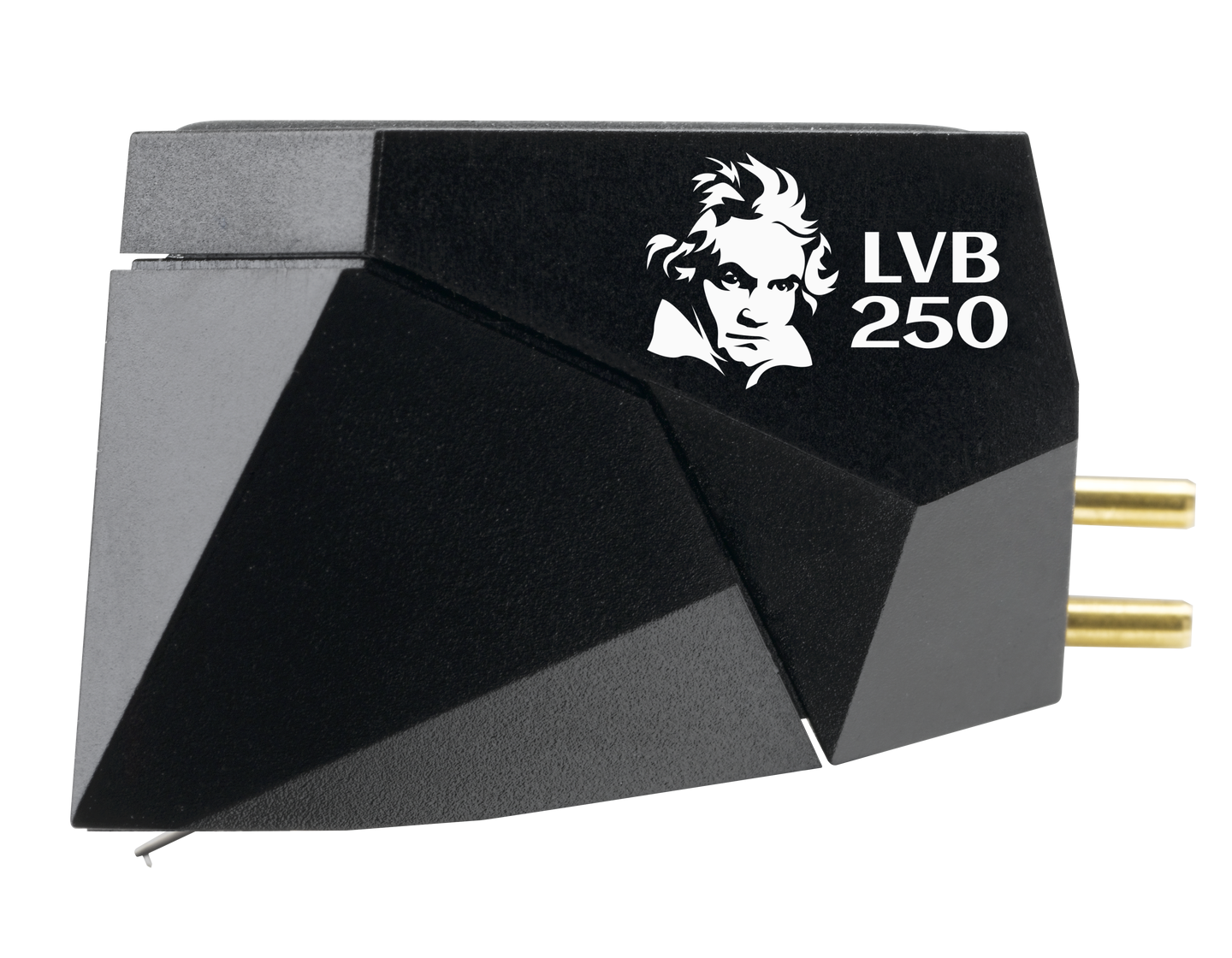

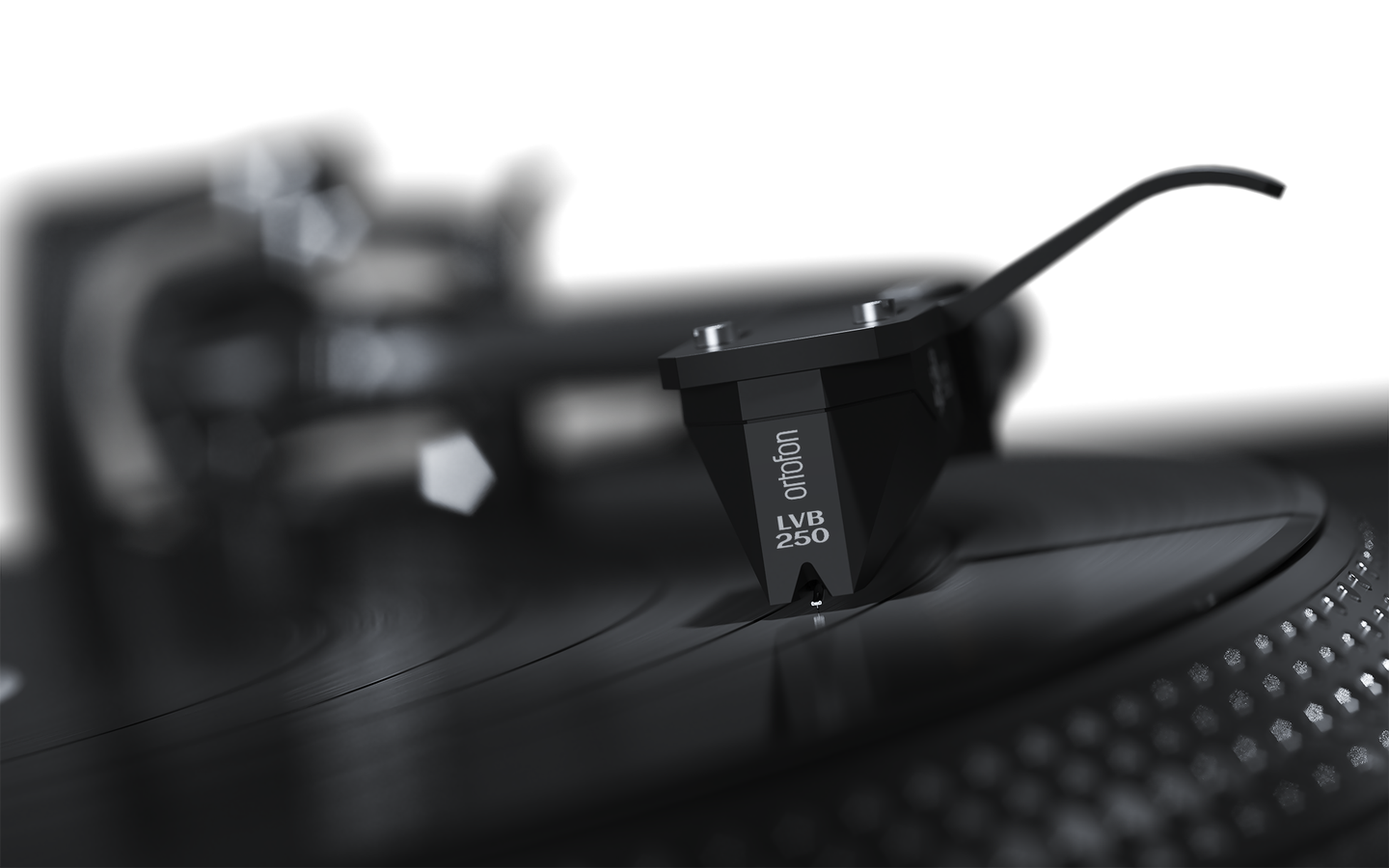

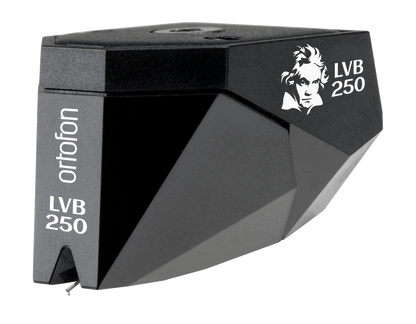

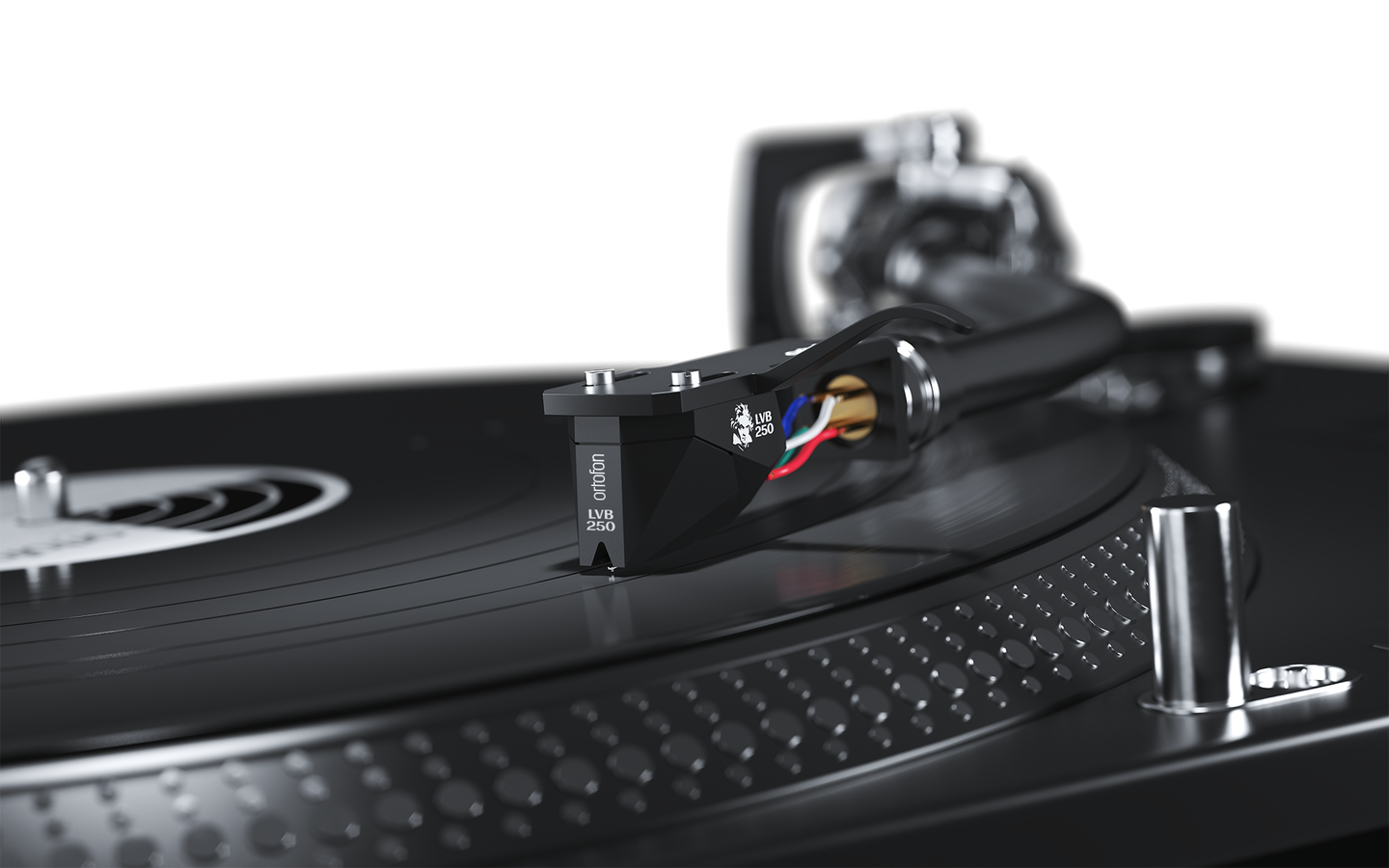

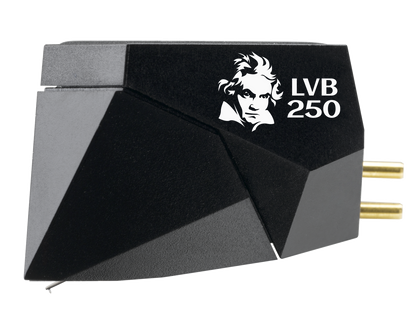

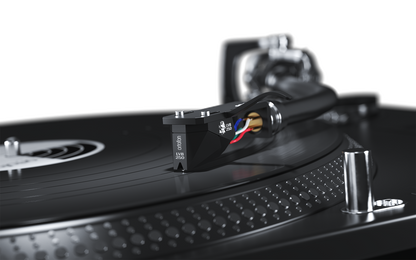

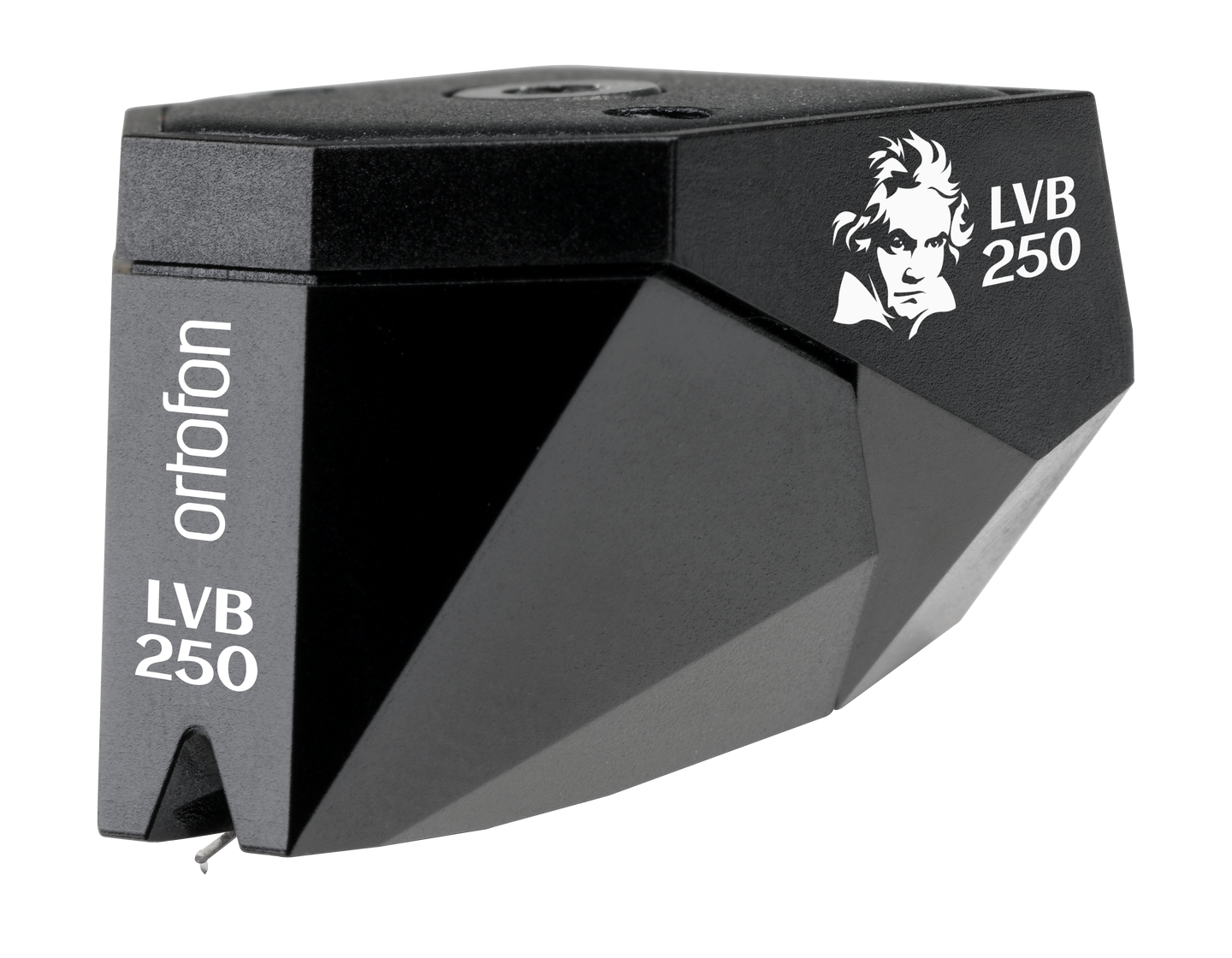

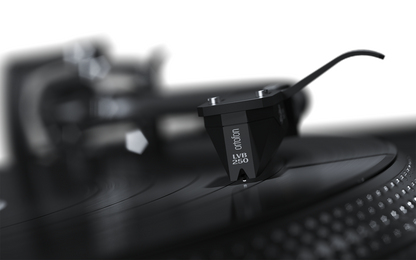

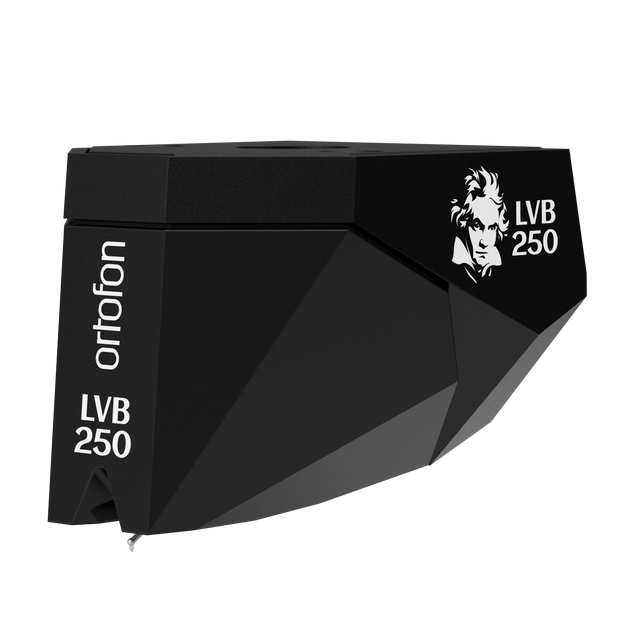

Spesifikasjoner for Ortofon 2M Black LVB 250
Channel balance at 1 kHz
1 dB
Output voltage at 1 kHz, 5cm/sec
5 mV
Channel seperation at 1 kHz
27 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz - 20 kHz
+ 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
80 µm
Compliance, dynamic, lateral
22 µm/mN
Stylus type
Nude Shibata diamond on a boron cantilever
Stylus tip radius
r/R 6/50 µm
Tracking force range
1.5-1.7 g (15-17 mN)
Tracking force, recommended
1.6 g (16 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.2 kOhm
Cartridge colour
Black/Black
Cartridge weight
7.2 g
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
630 mH
Recommended load capacitance
150-300 pF
