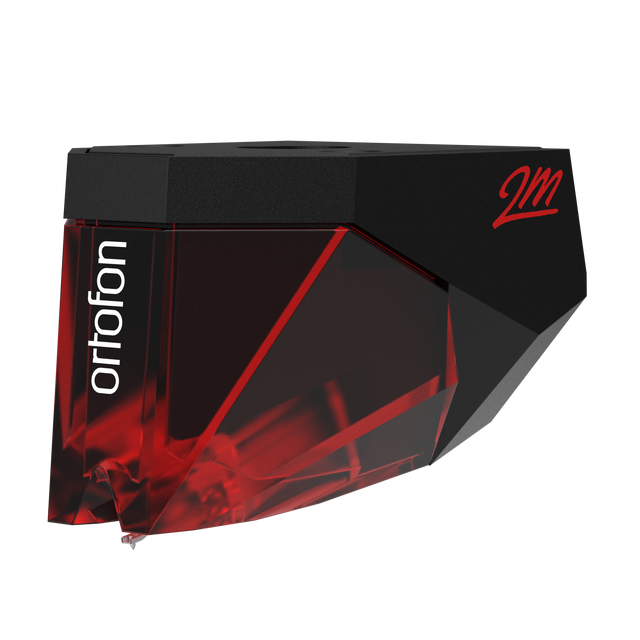

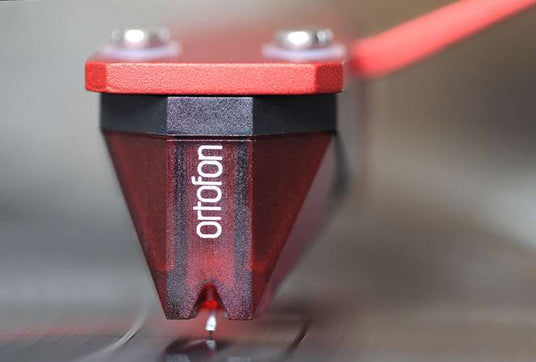

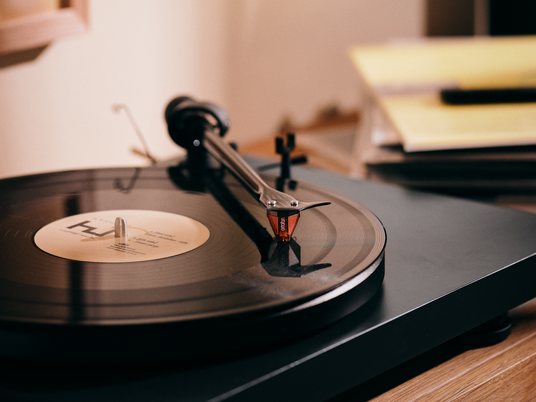

Egenskaper for Ortofon 2M Red
Channel balance at 1 kHz
1.5 dB
Output voltage at 1 kHz, 5cm/sec
5.5 mV
Channel seperation at 1 kHz
22 dB
Channel seperation at 15 kHz
15 dB
Frequency response 20 Hz - 20 kHz
+ 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force
70 µm
Compliance, dynamic, lateral
20 µm/mN
Stylus type
Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
1.6-2.0 g (16-20 mN)
Tracking force, recommended
1.8 g (18 mN)
Tracking angle
20°
Internal impedance, DC resistance
1.3 kOhm
Cartridge colour
Black/Red
Cartridge weight
7.2
Premounted cartridge weight
16.7 g
Recommended load resistance
47 kOhm
Internal inductance
700 mH
Recommended load capacitance
150-300 pF
