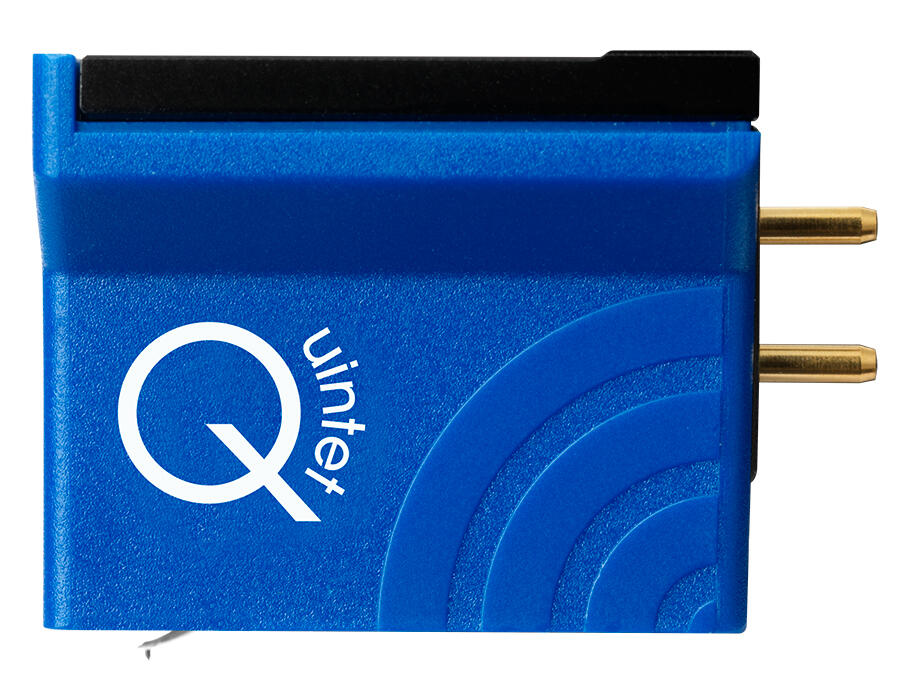

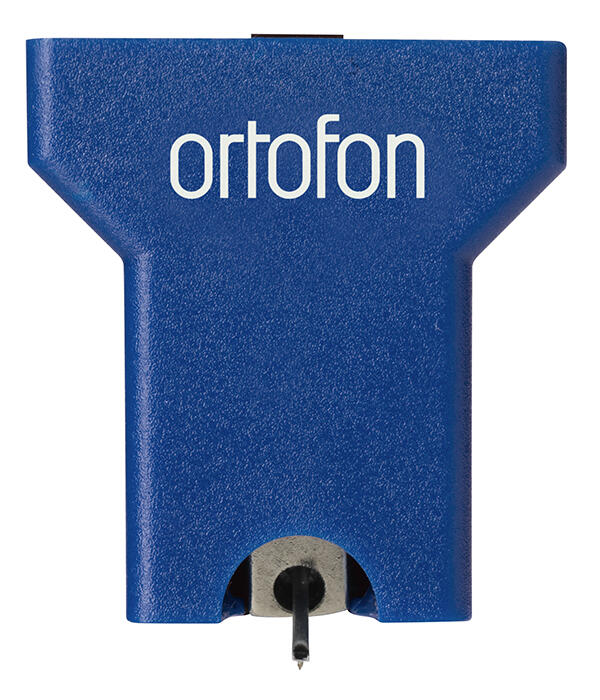

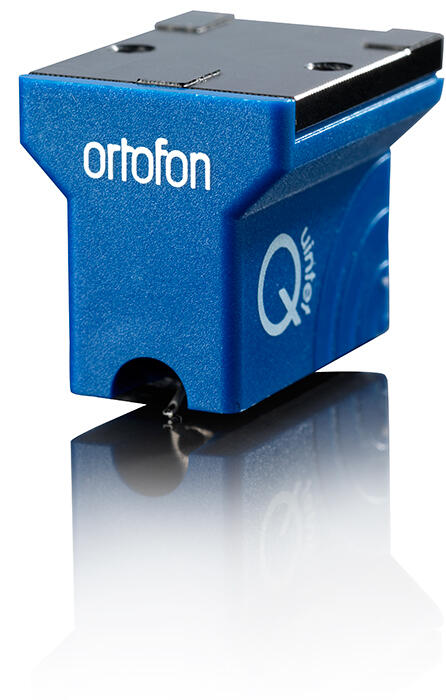

Spesifikasjoner for Ortofon MC Quintet Blue
Channel balance at 1 kHz
< 1.5 dB
Output voltage at 1 kHz, 5cm/sec
0.5 mV
Channel seperation at 1 kHz
> 21 dB
Channel seperation at 15 kHz
> 14 dB
Frequency response 20 Hz - 20 kHz
+/- 2.5 dB
Tracking ability at 315Hz at recommended tracking force
70 µm
Compliance, dynamic, lateral
15 µm/mN
Stylus type
Nude Elliptical
Stylus tip radius
r/R 8/18 µm
Tracking force range
2.1-2.5 g
Tracking force, recommended
2.3 g
Tracking angle
20°
Internal impedance, DC resistance
7 Ohm
Recommended load impedance
> 20 Ohm
Coil wire material
Pure 4-nines silver
Cartridge body material
PC/Alu
Cartridge colour
Blue
Cartridge weight
9 g
